Bushboard & Max Top router cutting tools

Bushboard M Stone Max Top Howdens Quartz Router and Installation Tools

From: £12.20 +VAT

From: £12.20 +VAT
Category: .
SKU: Per Variation
Vacuum brazed diamond router bits for cutting and installation of Bushboard and Max-Top Quartz. These are alternative style parts for the fitting kit currently available from Bushboard but rather than Electroplated diamond these are vacuum brazed. The effect is extended lifespan by approximately ten times. These tools have been predominantly tested on CNC machines and can be used as a straight replacement for the Bushboard electroplated tools on CNC equipment.

From: £12.20 +VAT

From: £12.20 +VAT

Product Description

We also stock tools 1 & 2 with a 12mm shank for European collet sizes – let us know if you require this size.

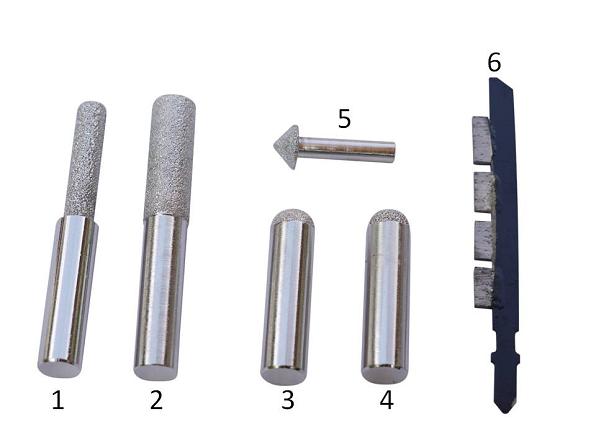

Each tool on the image is numbered – the numbers correspond as follows:

  1. Straight router #40 grit, 12.7mm diameter shaft, 10mm diameter cutting head.
  2. Straight router #70/80 grit, 12.7mm diameter shaft, 13mm diameter cutting head.
  3. Drainer groove finishing tool #70/80 grit 12.7mm diameter shaft. Used to smooth out the groove produced by tool 4.
  4. Drainer groove cutting tool #40 grit 12.7mm diameter shaft. Used to cut the drainer groove.
  5. Bevel cutting cone 6.35mm diameter shaft. For reproducing the fine edge bevel.
  6. Jigsaw Blade 4 segment metal bonded diamond. Use wet with no yaw action.

The full set comprises one of each of the above items.

Blades to fit the Festool TS55 are here:- Bushboard Blades
Drills for dry cutting are here: Vacuum Brazed Drills
Alternative Jigsaw Blades are available here: Jigsaw Blades

Item BBCT8 listed below is a straight router that is very aggressive at #20/30, this is designed more for CNC machinery than hand held routers.

Due to customer demand we have made our drainer routers available at a longer length of 100mm (the regular router bits are 50mm in length). These provide more working length for use with drainer templates.
